Android Solution Advertising Display 10.1 Inch Open Frame with Serial Port
It is RK3288 Quad core cortex A17,1.8G with RAM 2GB,internal memory 8GB and Full HD 10.1"LCD panel,resolution of 1280*800, with WIFI,speaker and bluetooth.
Wide range of uses: For banks, shopping malls, businesses, hospitals, hotels, campuses, airports, cinemas, media companies.
FAQs
Q: Can we printing our logo on the housing?
A: Besides the boot logo, we can do the silk-printing LOGO on the housing.
Q: What kind of inspection you can provide?
A: Sunchip has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: Sunchip provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances.
During the guarantee period, Sunchip will send the new replacement for free if it's because of hardware problem after we confirm, and cover the shipment fee for the replacement delivery, the buyer just need to cooperate to send the damage one back to our factory.
For the problem advertising machine, it shall be returned to factory for repairing. Shining will be responsible for expenses arising out of such reparation, including but not limited to the cost of new parts and shipment of products or parts from us to Buyer.
Beyond the guarantee period machine, Sunchip will provide maintenance service and technical support (Hardware and other possible charges, Sunchip will not bear the responsibility).
Q: Are you manufacturer(factory)?
A: Yes, we're. Also OEM/ODM service available here. It's our pleasure to provide best solution for you.
Q: What's the lead time?
A: Mass order: 25-35days depending on order quantity.
Sample: 1day when there is stock,7-10days for custom design.
Q: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, Western Union, Paypal,etc.
Q: Do you provide OEM service?
A: Of course .We have a professional team which is having considerable experience in colour decoration cases and manufacturing. Please send us the high definition images, text, logo and how would you like to arrange them. We will try our best to put your ideas into effect and sent you finished files for confirmation.
Product Description
| System | CPU | RK3288 Quad Core Cortex-A17@1.8G GPU Mali T764 |
| RAM | 2GB/4GB (optional) |
| EMMC | 8GB/16GB/32GB(optional) |
| OS | Android 6.0 (Linux OS optional) |
| Display | LCD TFT display size | 10.1" |
| resolution | 1280*800 |
| Contrast | 800:1 |
| Brightness | 300cd/m2 |
| screen ratio | 16:10 |
| Network | WiFi | WiFi 802.11b/g/n (2.4G/5G optional) |
| Mobile network | | | | Support full Netcom 4G (optional) |
| Bluetooth | Bluetooth 4.0 |
| Ethernet | 10M/100M/1000M Ethernet |
| Interface | USB Interface | support USB host*2 |
| Yype_c USB | USB_Debug Interface*1 |
| DC | DC power supply 12V input |
| SD card slot | supports up to 32GB |
| HD | supports HD output |
| Built-in speaker | 8Ω 2W*2 |
| Power connector | | | | 6PIN pitch 2.0 built-in power board interface *1 (optional) |
| GPIO port | 4PIN pitch 2.0 GPIO external expansion port *1 (optional) |
| RS232 interface | | | | 4PIN pitch 2.0 RS232 or UART external expansion port *1 (optional) |
| UART interface | 4PIN pitch 2.0 UART external expansion port *1 (optional) |
| MIC interface | 2PIN pitch 2.0 MIC external expansion port *1 (optional) |
| Infrared remote control | Support built-in infrared remote control (optional) |
| Infrared remote control and LED light support 6PIN pitch 2.0 external expansion port (optional) |
| USB expansion port | 4PIN pitch 2.0 supports USB host external expansion port *3 (optional) |
| RJ45 | Ethernet port |
| Headphones | 3.5mm stereo headphone output |
| Button | button | volume +, volume -, power on/off |
| Media playback | Video format | Supports 2160P@24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playback |
| Audio format | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Text | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 |
| Image format | JPG,BMP,PNG |
| System Management | APK Install | APK Installer |
| Root Permissions | Original Android system, open root permissions, can be customized for product development |
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended |
| OTA upgrade | Support OTA remote upgrade |
| Other | dual screen display | support Dual screen display different content function (optional) |
| VESA hole | | | | supports 75*75mm VESA hole |
| Gravity sensing | Support 0 degree, 90 degree, 180 degree, 270 degree manual / automatic rotation |
| Accessories | adapter | power adapter 12V/2A |
| Instruction manual | Standard |
Product image

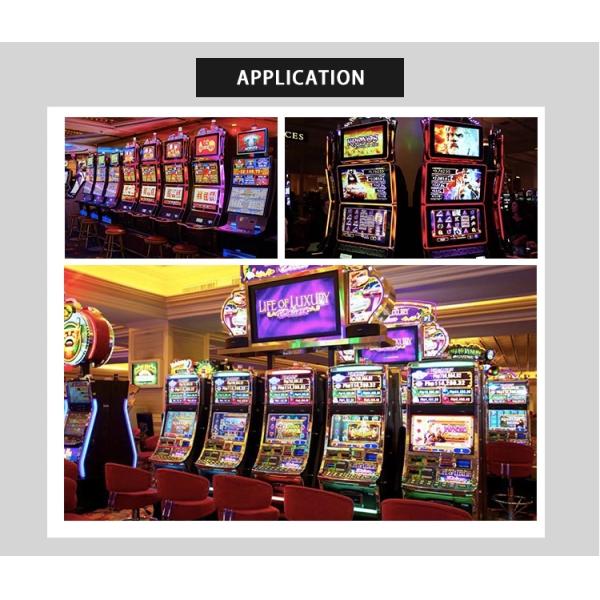

Applications
